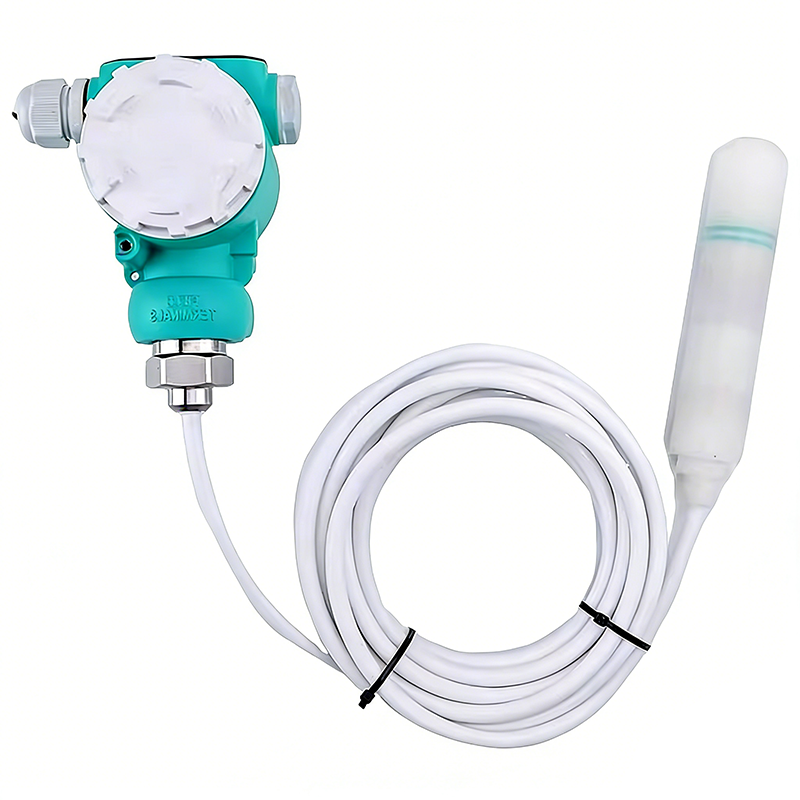

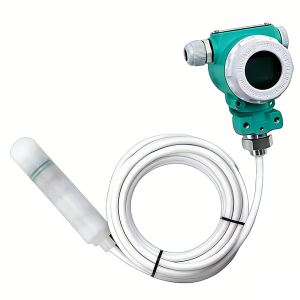

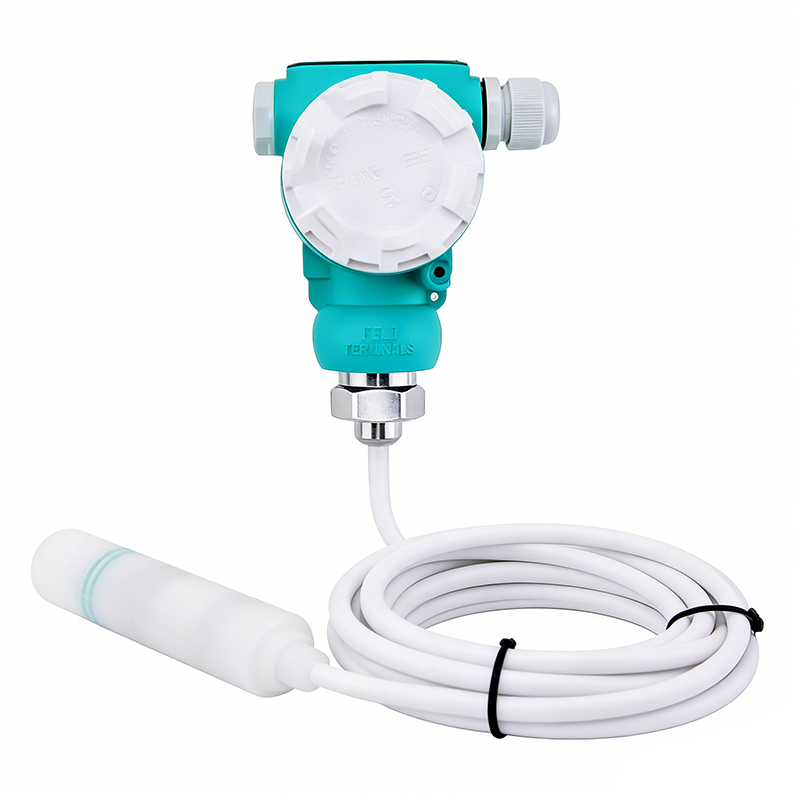

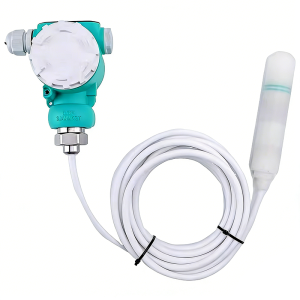

803F Armored PTFE Anti-Corrosion Submersible Level Transmitter
PTFE anti-corrosion submersible level transmitter for harsh environments

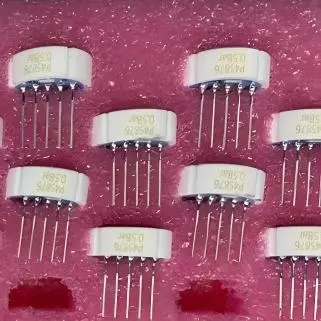

Ceramic sensing core with excellent acid and alkali resistance

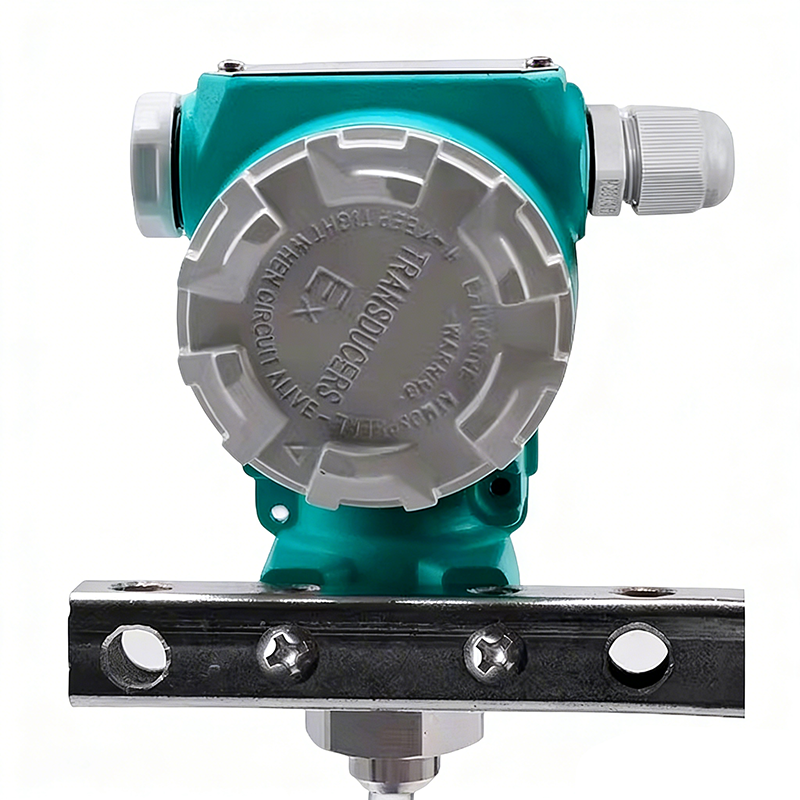

Armored 2088 housing for strong mechanical protection

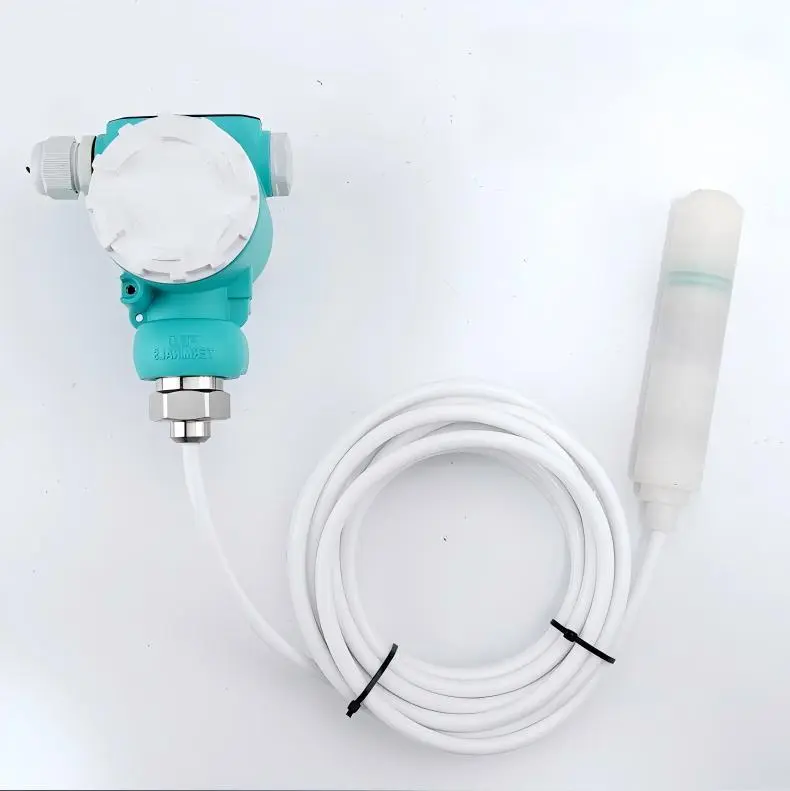

PTFE probe and cable designed for corrosive liquids
High measurement accuracy with stable signal output
Supports multiple outputs including 4–20mA, 0–5V, 0–10V, and RS485
Suitable for chemical, industrial, and wastewater applications
Application
The 803F Anti-Corrosion Submersible Level Transmitter is widely used for liquid level monitoring in corrosive environments, including:
-
Chemical processing plants
-
Industrial liquid storage tanks
-
Wastewater treatment systems
-
Acid and alkali liquid level monitoring
-
Environmental monitoring systems
Description
The 803F Armored PTFE Submersible Level Transmitter is designed for accurate liquid level measurement in corrosive and harsh industrial environments. It features a corrosion-resistant ceramic sensing core combined with a PTFE probe and cable, providing strong resistance to acid and alkali media.

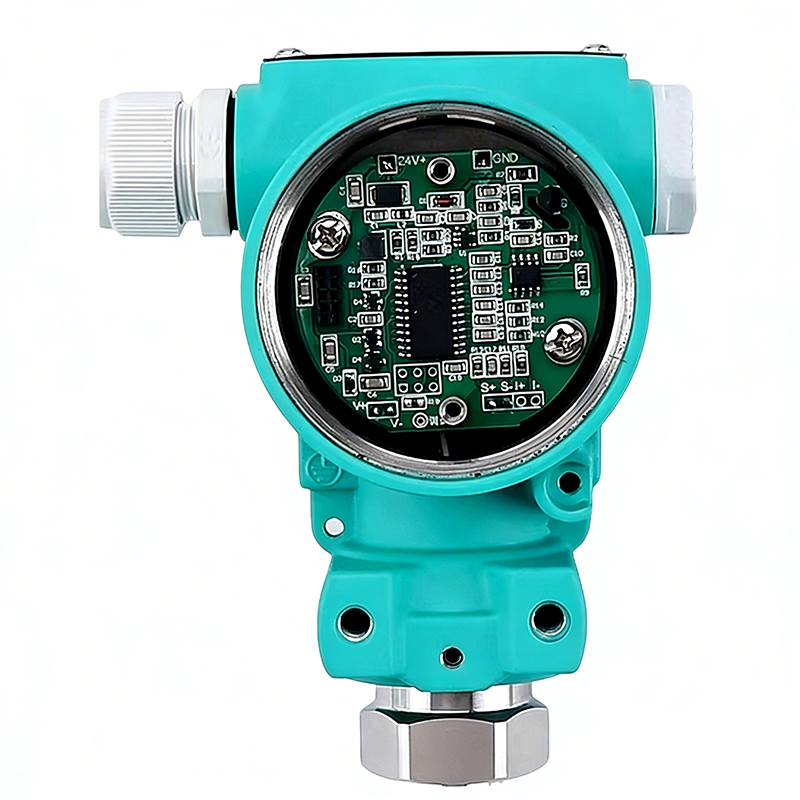

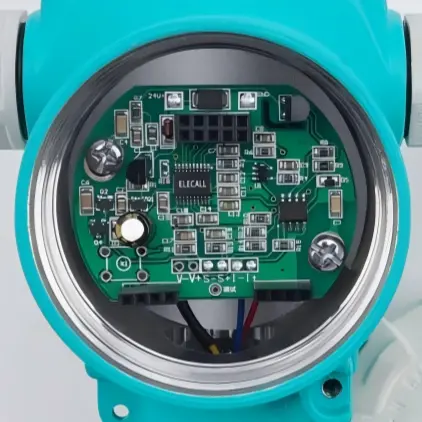

The transmitter adopts a durable 2088 armored housing that offers excellent mechanical protection and long-term reliability. The internal intelligent circuit board provides automatic temperature compensation and linear calibration, ensuring stable signal output and strong anti-interference performance.

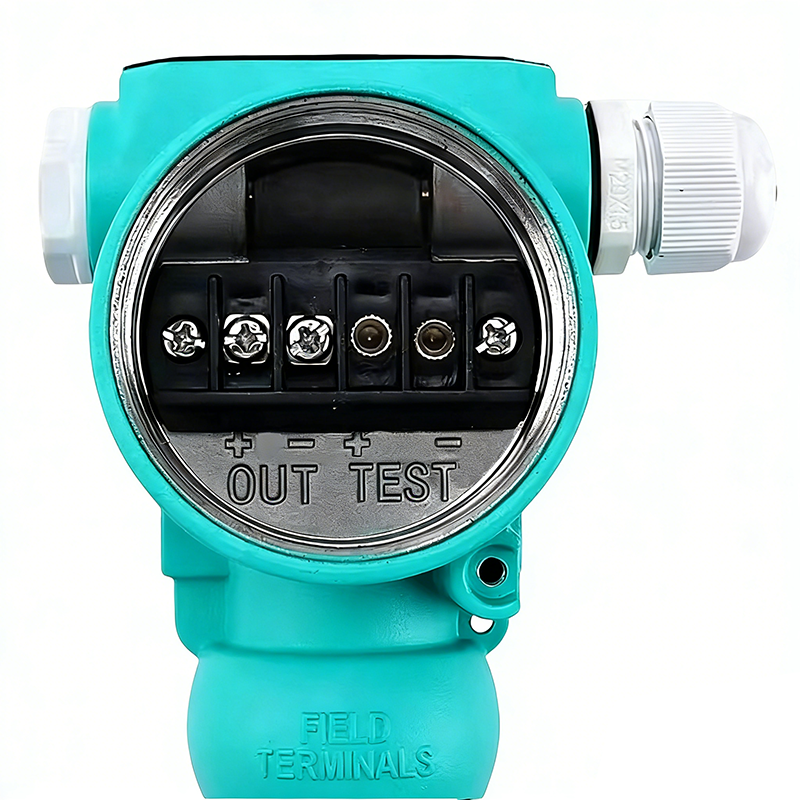

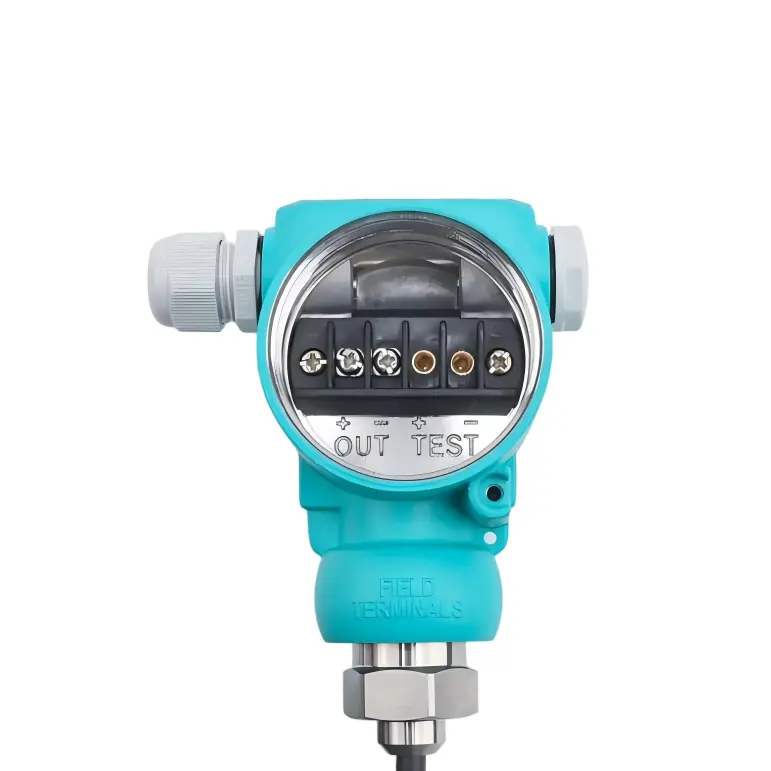

Calibrated using the Druck calibration system, the transmitter achieves high calibration accuracy and efficiency. With its simple wiring structure and convenient installation design, the device is easy to deploy in various industrial liquid level measurement systems.
This transmitter is suitable for a wide range of applications such as chemical plants, industrial systems, and wastewater treatment facilities where corrosion resistance and measurement stability are critical.
Features
The 803F Armored PTFE Submersible Level Transmitter is designed for accurate liquid level measurement in corrosive and harsh industrial environments. It features a corrosion-resistant ceramic sensing core combined with a PTFE probe and cable, providing strong resistance to acid and alkali media.
The transmitter adopts a durable 2088 armored housing that offers excellent mechanical protection and long-term reliability. The internal intelligent circuit board provides automatic temperature compensation and linear calibration, ensuring stable signal output and strong anti-interference performance.
Calibrated using the Druck calibration system, the transmitter achieves high calibration accuracy and efficiency. With its simple wiring structure and convenient installation design, the device is easy to deploy in various industrial liquid level measurement systems.
This transmitter is suitable for a wide range of applications such as chemical plants, industrial systems, and wastewater treatment facilities where corrosion resistance and measurement stability are critical.
Technical Details
Model:
803F
Product Type:
Anti-Corrosion Submersible Level Transmitter
Measurement Medium:
Acidic liquids and corrosive media
Measurement Range:
0–100 m (customizable)
Accuracy:
±0.1% / ±0.25% (default ±0.5%)
Power Supply:
15–30 VDC (standard 24 VDC)
Output Signal:
4–20 mA (default), optional 0–5 V / 0–10 V / RS485
Communication Protocol:
RS485 Modbus-RTU (optional)
Operating Temperature:
0–70°C
Medium Temperature:
-20–70°C (up to 200°C customizable)
Temperature Compensation:
-10–70°C
Storage Temperature:
-10–80°C
Temperature Drift:
±0.01% FS / °C
Response Time:
200 ms
Installation Method:
Submersible installation
Connector Material:
304 stainless steel (PTFE optional)
Overload Capacity:
150% full scale
Humidity Range:
0–95% RH
