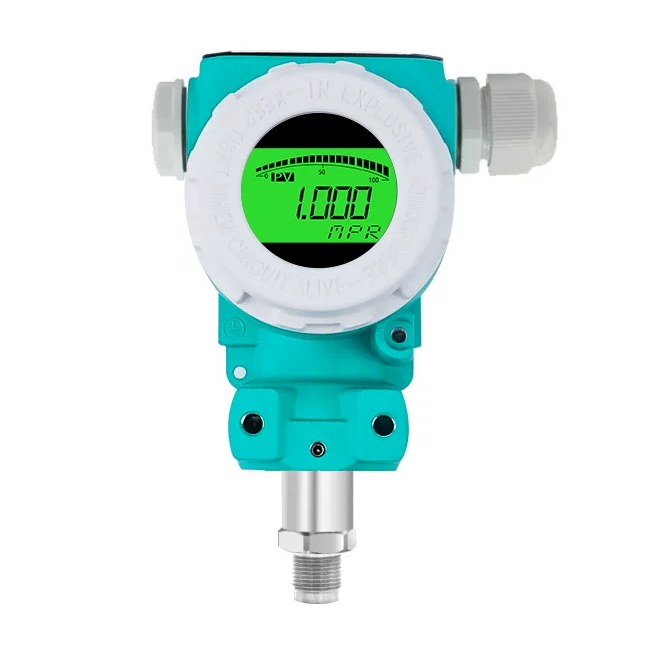

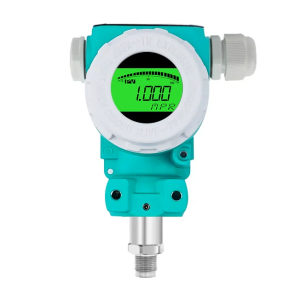

800AS Hard-Diaphragm Explosion-Proof Pressure Transmitter
800AS Series hard diaphragm explosion-proof pressure transmitter for slurry, mud, and mining applications
Anti-clogging strain-gauge technology for reliable measurement in harsh media
High-strength glass display window for durability and clear visibility
Stable 4–20mA output for consistent signal transmission
Optional digital display for real-time monitoring
Customization available to meet different application requirements
Application
-
Slurry and mud pressure measurement
-
Mining and mineral processing systems
-
Pulp, ore slurry, and tailings pipelines
-
Sewage and wastewater treatment
-
Chemical process control
-
Hydraulic systems
-
Industrial liquid and gas pressure monitoring
-
Harsh and high-pressure environments
Description
The 800AS Series Pressure Transmitter is specially designed for mud, slurry, and mineral pulp applications where conventional pressure sensors are prone to blockage and leakage. It adopts a hard flat diaphragm structure combined with strain-gauge sensing technology, ensuring accurate pressure measurement while preventing clogging.
The transmitter uses premium silicon wafers and a precision signal processing circuit board for fast sampling speed and strong anti-interference performance. The stress-slot diaphragm design improves accuracy in low-range measurements. A high-strength glass cover protects the optional 4-digit LCD display, providing clear and stable readings even in harsh environments.
With a wide selectable pressure range and multiple output options, the 800AS transmitter delivers reliable performance for demanding industrial conditions.
Features
-
Hard Flat Diaphragm Design – Anti-clogging, leak-free performance
-
Explosion-Proof Structure – Safe for harsh industrial environments
-
Designed for Slurry & Mud – Ideal for mining and pulp applications
-
High Measurement Accuracy – Optional 0.2% accuracy (default 0.5%)
-
Wide Pressure Range – 500 kPa to 60 MPa selectable
-
Stress Slot Design – Improved precision for low-pressure ranges
-
Fast Sampling Speed – Precision signal processing circuit
-
Premium Silicon Sensing Element – Strong anti-interference capability
-
LCD 4-Digit Display (Optional) – Clear and intuitive readings
-
Customizable Options – Output, range, and display configurable
-
Durable Construction – Wear-resistant, pressure-resistant, corrosion-resistant
Technical Details
Pressure Type
Gauge Pressure
Measured Medium
Liquid / Gas (non-corrosive to wetted materials)
Pressure Range
500–900 kPa, 1–60 MPa
Accuracy Class
±0.5% FS (default), ±0.2% FS (optional)
Medium Temperature
0–60°C
Power Supply
10–30 VDC (4–20 mA) / 12–30 VDC (0–10 V, optional)
Output Signal
4–20 mA (default), 0–10 V, RS485
Communication Protocol
Modbus-RTU (RS485, optional)
Overload Capability
150% of full scale
Temperature Drift
±0.01% FS / °C
Long-Term Stability
±1% FS / year
Display
LCD 4-digit digital display (optional)
Diaphragm Type
Hard flat diaphragm, strain-gauge
Protection Features
Anti-clogging, explosion-proof design
