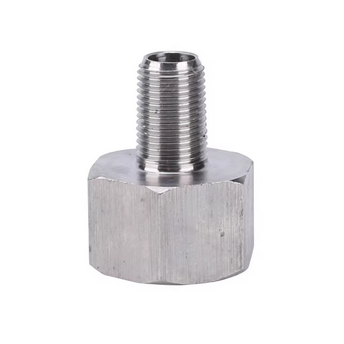

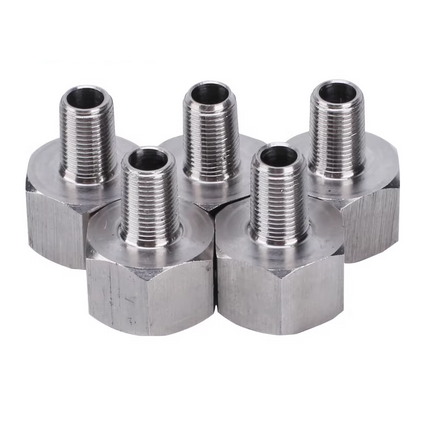

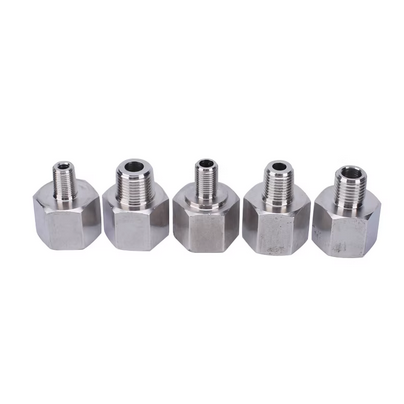

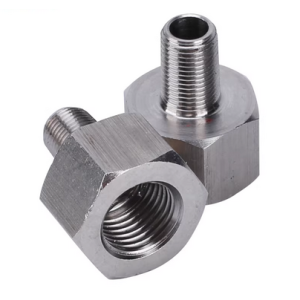

304 Stainless Steel Pressure Gauge Adapter with female-to-male thread conversion
304 stainless steel pressure gauge adapter for female-to-male thread conversion
Available in M14×1.5 and M20×1.5 sizes
Compatible with NPT, BSP, and metric thread standards
Durable construction with strong corrosion resistance
Suitable for various pressure measurement and connection applications
Application
Widely used in pressure measurement systems:
-
Pressure gauge installation and connection
-
Hydraulic systems
-
Pneumatic systems
-
Water supply systems
-
Oil and gas pipelines
-
Industrial equipment
Suitable for:
-
Water
-
Oil
-
Gas
-
Non-corrosive or mildly corrosive media
Description
This pressure gauge adapter is designed for thread conversion between different connection standards, enabling flexible installation of pressure gauges and instruments.
Made of high-quality 304 stainless steel, it offers excellent corrosion resistance, high strength, and long service life, making it suitable for harsh industrial environments.
The adapter features a female-to-male thread design, allowing seamless connection between different thread types such as metric, NPT, and BSP. Precision machining ensures tight sealing, reliable performance, and easy installation.
It is an essential accessory for pressure gauge systems, helping improve compatibility and installation efficiency.
Features
-

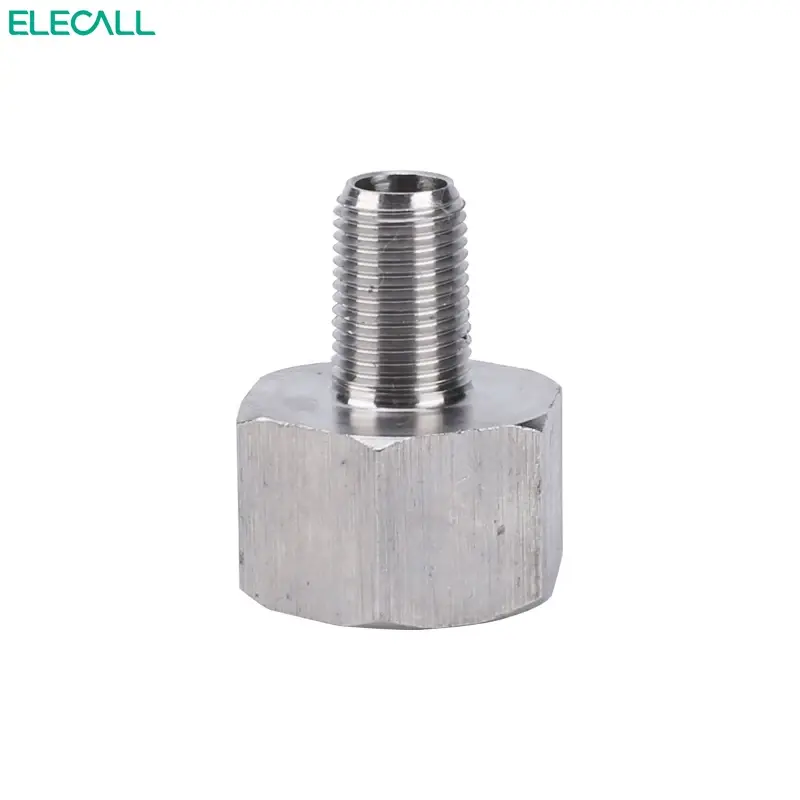

High-quality 304 stainless steel, corrosion-resistant and durable
-

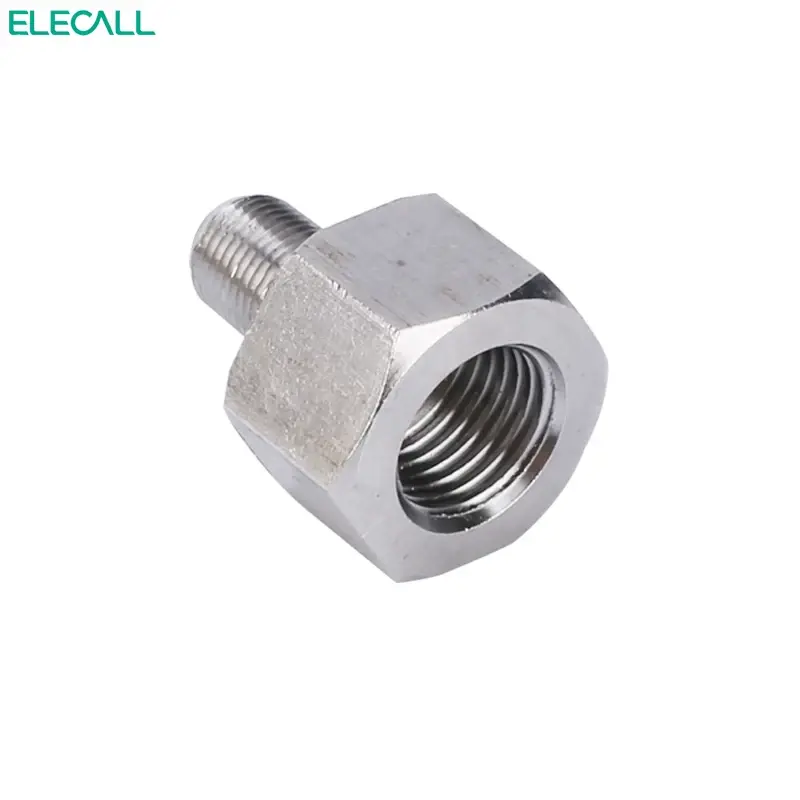

Female-to-male thread conversion design
-

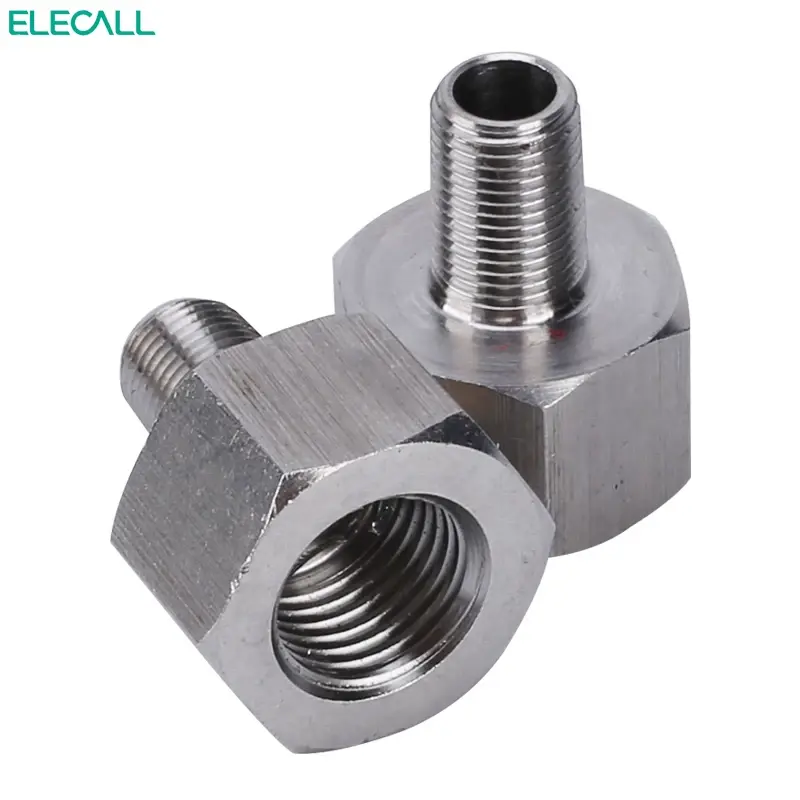

Compatible with multiple thread standards (Metric / NPT / BSP)
-

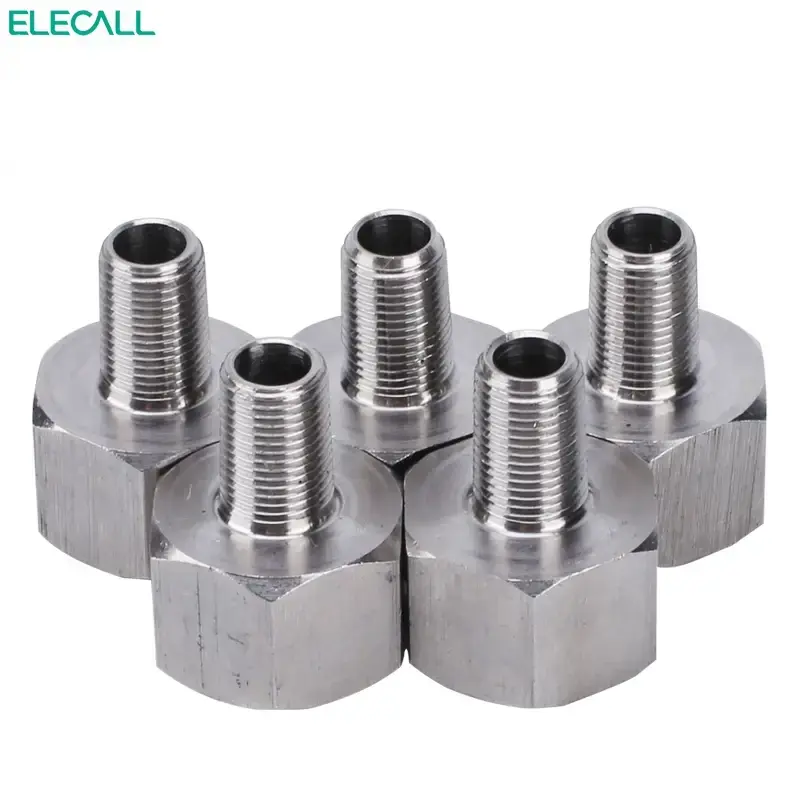

Precision machining for tight sealing and leak prevention
-
Strong mechanical strength and wear resistance
-
Easy installation and reliable connection
-
Suitable for various industrial environments
Technical Details
Material
304 Stainless Steel
Thread Specifications (M14×1.5 Series)
M14×1.5 (Female) to NPT 1/2, 3/8, 1/8, M10×1, and M20×1.5 (Male). Dimensions: Length 22 mm, outer diameter 12.5 mm, precision-machined threads with pitches including 14G, 19G, 28G, and 1 mm.
Thread Specifications (M20×1.5 Series)
M20×1.5 (Female) to 3/8, M14×1.5, 1/8, NPT 1/4, and M10×1 (Male). Dimensions: Length 25 mm, outer diameter 18 mm, thread pitch options include 19G, 28G, 1 mm, and 1.5 mm.
Material & Construction
Made from high-quality 304 stainless steel with excellent corrosion resistance, high strength, and long service life. Suitable for harsh environments including water, oil, and gas systems.
Precision Machining
Manufactured with CNC precision processing for accurate thread fitting, strong sealing performance, and reduced risk of leakage.
Compatibility
Designed for pressure gauges, water meters, and pipeline systems. Supports multiple thread standards including metric, BSP, and NPT connections.
Durability & Performance
Thickened design ensures high pressure resistance, anti-cracking performance, and long-term durability even under continuous use.
Notes
Manual measurement may have slight deviations. Actual product dimensions shall prevail. Custom thread sizes and specifications are available upon request.
