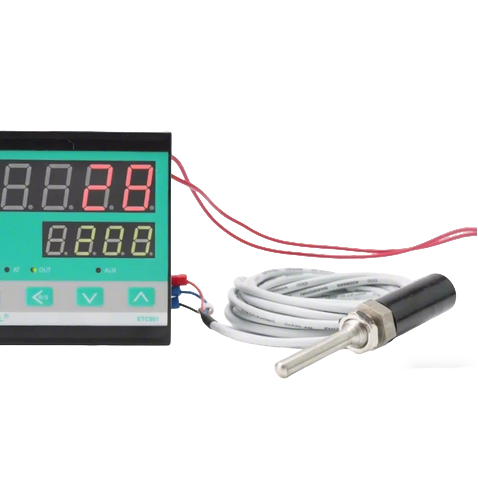

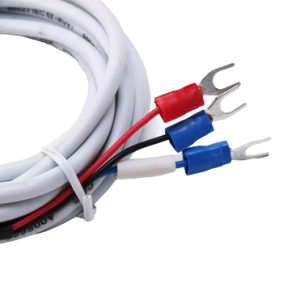

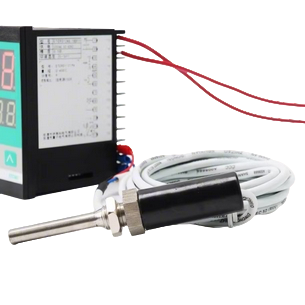

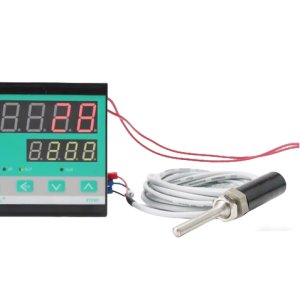

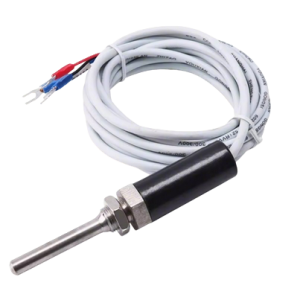

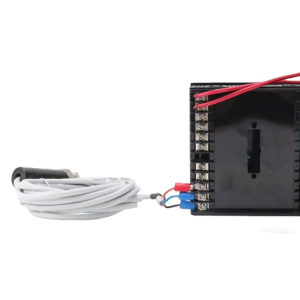

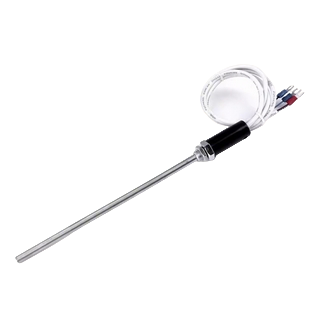

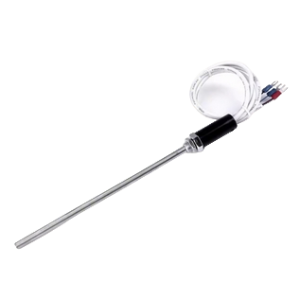

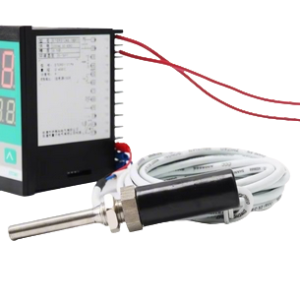

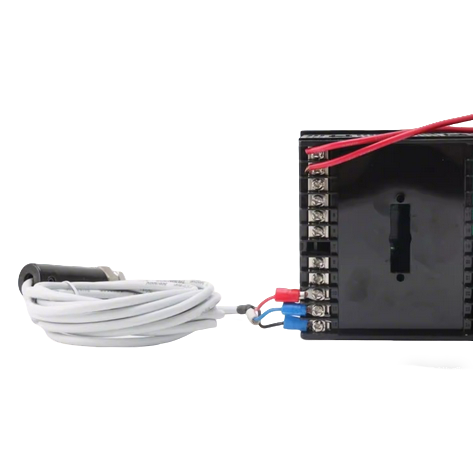

Waterproof Pt100 probe temperature sensor
Waterproof Pt100 probe temperature sensor with stainless steel protection tube
Model WZPT-03 with high-accuracy platinum resistance element
Measurement range from -200°C to 400°C
Fast thermal response time ≤20 seconds
Durable stainless steel probe with 7 mm diameter
Compact design with M12×1 fixed mounting thread
Suitable for industrial temperature monitoring and control systems
Application
Industrial temperature measurement systems
Water and liquid temperature monitoring
HVAC temperature control equipment
Laboratory and testing instruments
Automation and process control systems
Description
Waterproof Pt100 probe temperature sensor with stainless steel protection tube
Model WZPT-03 with high-accuracy platinum resistance element
Measurement range from -200°C to 400°C
Fast thermal response time ≤20 seconds
Durable stainless steel probe with 7 mm diameter
Compact design with M12×1 fixed mounting thread
Suitable for industrial temperature monitoring and control systems
Features
High-precision Pt100 platinum resistance sensing element
Wide temperature measurement range (-200°C to 400°C)
Waterproof probe design for harsh environments
Stainless steel protection tube for corrosion resistance
Fast thermal response for accurate temperature detection
Stable signal output suitable for industrial monitoring
Technical Details
Model:
WZPT-03
Sensor Type:
Pt100
Temperature Range:
-200°C to 400°C
Thermal Response Time:
≤20 s
Probe Length:
251 mm
Probe Diameter:
7 mm
Protection Tube Material:
Stainless Steel Φ7
Mounting Thread:
M12×1
Weight:
50 g
Accessories
