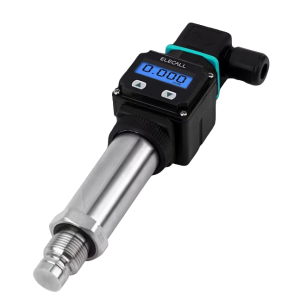

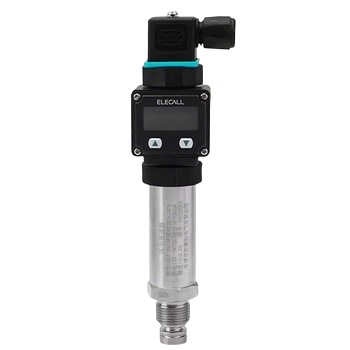

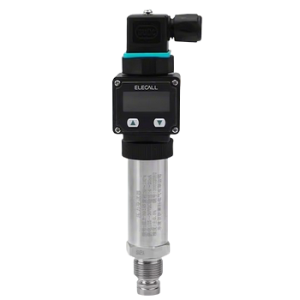

801AS hard flat diaphragm pressure transmitter
Hard flat diaphragm pressure transmitter designed for anti-clogging applications
Wear-resistant and impact-resistant structure for harsh environments
Suitable for measuring slurry, viscous liquids, and particle-containing media
Diffused silicon sensor for high accuracy and stable performance
Compact design with lightweight stainless steel body
LCD display for clear and real-time pressure reading
Application
-
Glue pressure measurement systems
-
Slurry and mud pressure monitoring
-
Particle-containing fluid measurement
-
Hydraulic and pneumatic systems
-
Industrial process control in harsh environments
-
Sand, gravel, and viscous liquid pressure monitoring
Description
The 801AS hard flat diaphragm pressure transmitter is specially designed for challenging industrial environments where clogging or wear may occur. Its flat diaphragm structure prevents blockage when measuring viscous liquids, slurry, or fluids containing particles.
Equipped with a high-precision diffused silicon sensor, the transmitter provides stable and accurate pressure measurements with fast response time. The durable 304 stainless steel housing ensures strong corrosion resistance and long service life.
With integrated measurement, control, and signal transmission functions, the device is suitable for various pressure monitoring systems involving water, air, oil, and hydraulic media. The LCD display allows users to easily monitor real-time pressure values.
Features
-
Hard flat diaphragm design prevents clogging in viscous or particle-containing media
-
Wear-resistant and impact-resistant structure for harsh environments
-
High-precision diffused silicon sensor chip
-
LCD display for clear and intuitive pressure readings
-
Hirschmann connector for reliable electrical connection
-
Industrial-grade anti-corrosion rubber sealing for shock absorption and leak prevention
-
High-strength sealing ring for high-pressure resistance
-
Compact size and lightweight design for easy installation
-
Three-point calibration (zero, midpoint, full scale) for higher accuracy
-
Durable 304 stainless steel housing for long service life
Technical Details
Model
801AS
Sensor Type
Diffused Silicon Pressure Sensor
Structure Type
Hard Flat Diaphragm (Anti-Clogging Design)
Material
304 Stainless Steel Housing
Display
LCD Digital Display
Connection Type
Hirschmann Electrical Connector
Measurement Media
Water, air, oil, hydraulic fluid, slurry, viscous liquids, particle-containing fluids
Calibration Method
Three-point calibration (zero, midpoint, full scale)
Sealing Type
Industrial-grade anti-corrosion rubber with high-strength sealing ring
Installation
Threaded installation (customizable)
Application Environment
Anti-clogging, wear-resistant, and impact-resistant industrial environments
Accessories
