Protecting the Valuable RO Membranes Starts with Monitoring Every Pressure and Level
In reverse osmosis (RO) and seawater desalination systems, RO membranes are the heart of the process. These membranes are highly sensitive to pressure fluctuations, salinity, and operational conditions. Therefore, monitoring the health of the system through accurate and reliable pressure, flow, and level measurements is crucial to safeguarding the membranes and optimizing system efficiency.
Key health indicators for the RO system include:
- Feedwater pressure
- Interstage pressure
- Concentrate pressure
- Permeate flow rate
These parameters act as the vital signs of the membrane system, enabling technicians to identify and address issues such as fouling, scaling, or improper system operation before they lead to costly downtime or membrane damage.
Core Monitoring Points and Product Applications

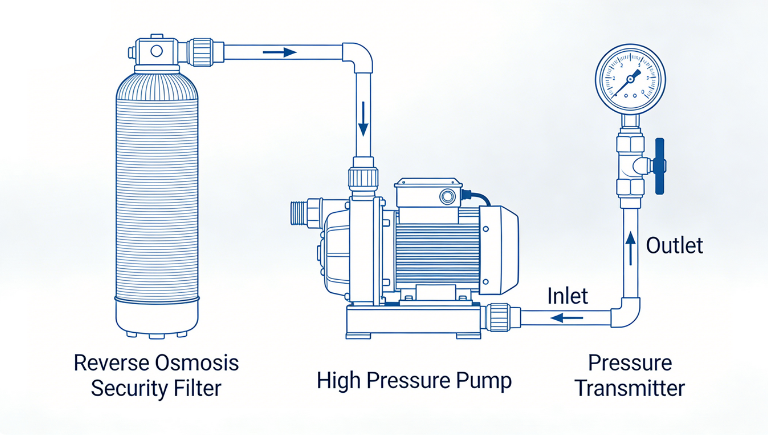

1. Security Filters and High-Pressure Pump Inlets & Outlets
Pressure Variations Indicate Potential Blockages or Pump Malfunctions
Pain Points:
- Sudden pressure spikes often signal filter clogging or pump malfunction.
- These pressure changes can also impact system stability and membrane performance.
Elecall Solution:
- Pressure Transmitter
Provides high-precision pressure monitoring at critical points in the system. It can also trigger interlock protection to shut down the system in the event of a pressure anomaly, preventing further damage to the pump or system components.

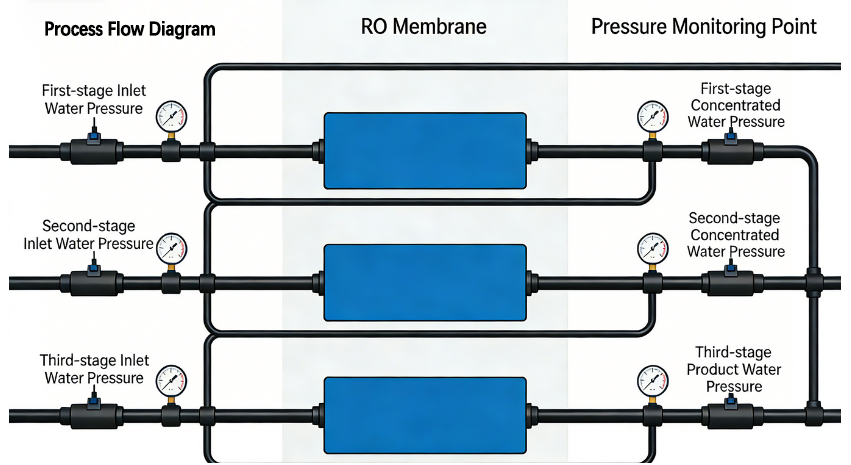

2. RO Membrane Assembly (Before, After, and Between Stages)
Pressure Drop Calculation: The Key to Diagnosing Membrane Fouling
Pain Points:
- A significant pressure drop between stages often indicates membrane fouling or scaling.
- Monitoring and calculating pressure differentials across the RO membranes and between stages helps diagnose potential issues early.
Elecall Solution:
- Multiple Pressure Transmitters
Provide synchronized, stable pressure readings from each stage of the RO system, allowing for accurate calculations of pressure drops and enabling the system to adjust automatically or alert operators for maintenance, cleaning, or replacement if needed.

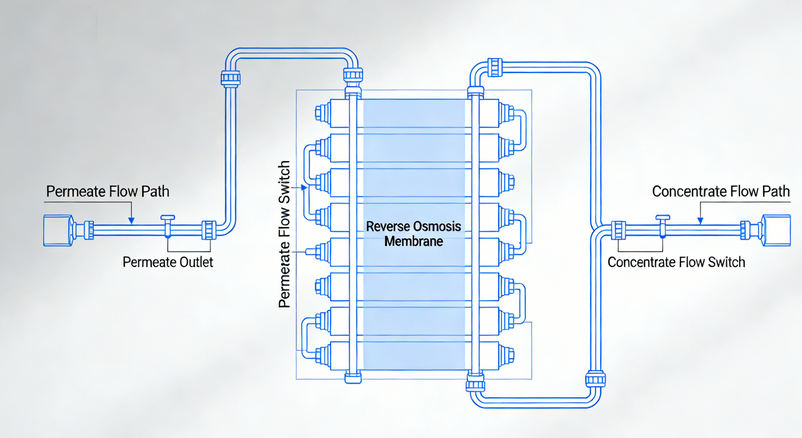

3. Permeate and Concentrate Pipelines
Ensuring Proper Flow Monitoring and Concentrate Discharge Verification
Pain Points:
- Accurate permeate flow measurement ensures that the system is producing water at the desired quality and quantity.
- It’s essential to confirm concentrate discharge to avoid system clogging or waste build-up.
Elecall Solution:
- Flow Switches
Used in concentrate discharge lines to ensure that the flow is operating as intended. These switches provide an added layer of safety by verifying that the pump is working and the concentrate is being effectively removed from the system.

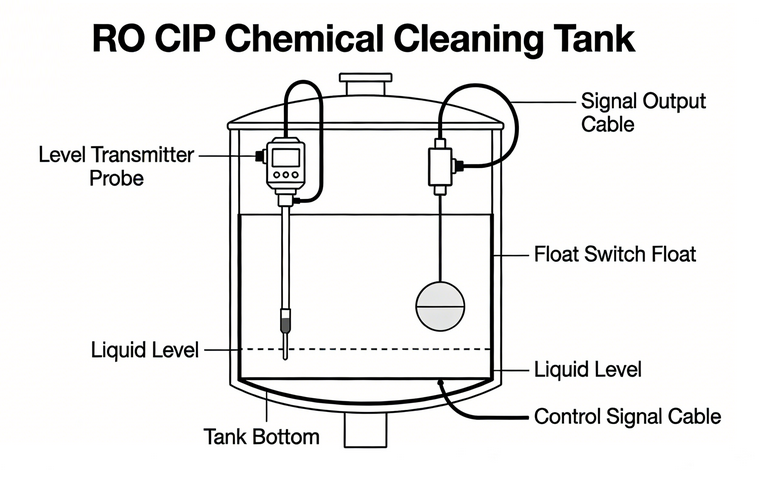

4. Chemical Cleaning Units (CIP)
Level Monitoring to Prevent Dry Running of Cleaning Pumps
Pain Points:
- Maintaining the correct chemical cleaning liquid levels is essential to prevent dry running of pumps, which could cause damage.
Elecall Solution:
- Submersible Level Transmitter
Monitors the level of cleaning solutions in CIP tanks, ensuring proper fluid levels for effective cleaning and preventing pump dry running. - Float Level Switch
Provides a mechanical solution for low-level alarms, ensuring that cleaning processes are safe and efficient.
Special Requirements for Instruments in RO and Desalination Systems
High Pressure:
- Pressure Transmitter solutions available with ranges up to XXX bar, providing highly accurate pressure measurements in demanding high-pressure applications.
Corrosion Resistance:
- 316L Stainless Steel or higher-grade materials for wetted parts, ensuring durability and corrosion resistance, especially in seawater and chemical cleaning environments.
High Accuracy & Stability:
- Elecall’s pressure and flow instruments are designed to reduce measurement errors, ensuring that the RO system operates within optimal parameters. This precision is crucial for calculating system recovery rates and salinity rejection, which directly impact water quality and energy consumption.
Conclusion: Equip Every Expensive RO System with Trustworthy, Precise “Sensors”
RO and seawater desalination systems require precision, stability, and reliability at every stage to protect the core membranes and optimize system performance. Elecall’s range of high-precision pressure transmitters, flow switches, and level sensors provides an integrated solution for all critical monitoring points, from feedwater intake to permeate production.
By selecting Elecall instruments, system integrators, and operators can rely on:
- Accurate pressure and flow measurements
- Corrosion-resistant materials suitable for harsh seawater and chemical environments
- High stability and precision for consistent performance and improved system efficiency
Elecall’s end-to-end monitoring solutions help ensure that every RO system operates at peak performance, extends the life of expensive membrane components, and maximizes energy efficiency.
Elecall — The Guardian of Your RO and Desalination Systems.
